Alternator for FORD Transit Mk3 Van (VE6) 2.5 D (TAL, TAS, TGL, TWS) 50 KW 01.1986
-
Article №: 4G0524 RIDEX Alternator 70A, 12VCar parts maker: RIDEXSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
- Alternator Charging Current [A]: 70
- Voltage [V]: 12
- Rated Voltage [V]: 14
- Belt Pulley Ø [mm]: 67
- Pulleys: with belt pulley
- Number of grooves: 4
- Plug Type ID: W/D+/B+
- Vehicle Main Current: for vehicles with 12V main current
- Rotation Direction: Clockwise rotation
- Alternator Type: excl. vacuum pump
- Fastening Type: 3-point attachment
- Clamp: M6
- Bore Diameter 1 [mm]: 8
- Number of mounting bores: 3
- Number of threaded holes: 1
- Thread Size: M8
- Distance from belt pulley to alternator [mm]: 39
- Condition: New
OEM: -

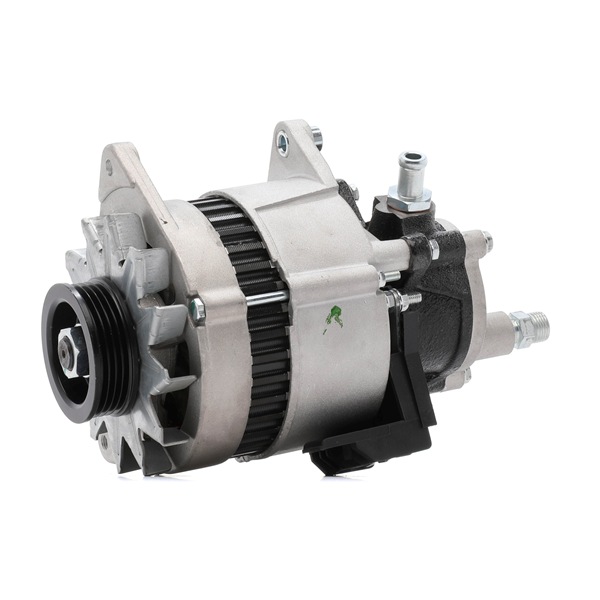

Article №: 4G0495 RIDEX Alternator 70A, 12VCar parts maker: RIDEXSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
- Alternator Charging Current [A]: 70
- Voltage [V]: 12
- Rated Voltage [V]: 14
- Belt Pulley Ø [mm]: 67
- Pulleys: with belt pulley
- Number of grooves: 4
- Vehicle Main Current: for vehicles with 12V main current
- Rotation Direction: Clockwise rotation
- Alternator Type: incl. vacuum pump
- Fastening Type: 3-point attachment
- Clamp: B+ (M6), M5 D+ M5 W
- Bore Diameter 1 [mm]: 8
- Number of mounting bores: 3
- Number of threaded holes: 1
- Thread Size: M8
- Distance from belt pulley to alternator [mm]: 40
- Units/Pulleys: incl. vacuum pump
- Condition: New
OEM: -
Article №: 4G0497 RIDEX Alternator 70A, 12VCar parts maker: RIDEXSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
- Alternator Charging Current [A]: 70
- Voltage [V]: 12
- Rated Voltage [V]: 14
- Construction Year from: 02/1986
- Belt Pulley Ø [mm]: 72
- Pulleys: with belt pulley
- Number of grooves: 4
- Vehicle Main Current: for vehicles with 12V main current
- Alternator Type: incl. vacuum pump
- Fastening Type: 3-point attachment
- Clamp: B+(M6),D+(M6),W(M5)
- Number of mounting bores: 3
- Distance from belt pulley to alternator [mm]: 33,7
- Condition: New
OEM:
-
Article №: 000084454010 MAGNETI MARELLI Rectifier, alternatorCar parts maker: MAGNETI MARELLISuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
-
Article №: 000028000010 MAGNETI MARELLI Alternator RegulatorCar parts maker: MAGNETI MARELLISuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
-
Article №: A4001SR AS-PL Alternator 70A, 12VCar parts maker: AS-PLSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
- Alternator Charging Current [A]: 70
- Voltage [V]: 12
- Pulleys: with belt pulley
- Length 3 [mm]: 83,00
- Length [mm]: 34,50, 11,00
- Condition: Remanufactured
OEM: -
Article №: A4014 AS-PL Alternator 70A, 12VCar parts maker: AS-PLSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
- Alternator Charging Current [A]: 70
- Voltage [V]: 12
- Pulleys: with belt pulley
- Diameter [mm]: 64,00
- Manufacturer Restriction: LUCAS
- Quality: STANDARD LINE
- New part without deposit
- Condition: New
OEM: -
Article №: A4001 AS-PL Alternator 70A, 12VCar parts maker: AS-PLSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
- Alternator Charging Current [A]: 70
- Voltage [V]: 12
- Pulleys: with belt pulley
- Manufacturer Restriction: LUCAS
- Quality: STANDARD LINE
- New part without deposit
- Condition: New
OEM:
-
Article №: 89213318 PowerMax Alternator 70A, 14VCar parts maker: PowerMaxSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
- Alternator Charging Current [A]: 70
- Voltage [V]: 14
- Belt Pulley Ø [mm]: 67
- Number of grooves: 4
- Distance of mounting bores [mm]: 81
- Distance from belt pulley to alternator [mm]: 34
- Condition: New
OEM:
-
Article №: 595.802.070.058 BV PSH Alternator 70A, 12VCar parts maker: BV PSHSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
- Alternator Charging Current [A]: 70
- Voltage [V]: 12
- Belt Pulley Ø [mm]: 67,0
- Number of grooves: 4
- Clamp: B+ (M6)
- Quality: RNL-Standard
- Number of mounting bores: 3
- Mounting Angle [degrees]: +60
- Condition: New
OEM:
-
Article №: 11442015 ALANKO Alternator 55A, 12VCar parts maker: ALANKOSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
- Alternator Charging Current [A]: 55
- Voltage [V]: 12
- Pulleys: with belt pulley
- Exchange Part
- Quantity Unit: Piece
- Condition: Remanufactured
-
Article №: 11441480 ALANKO Alternator 70A, 12V, 4Car parts maker: ALANKOSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
- Alternator Charging Current [A]: 70
- Voltage [V]: 12
- Belt Pulley Ø [mm]: 72
- Pulleys: with belt pulley
- Number of ribs: 4
- Exchange Part
- Quantity Unit: Piece
- Condition: Remanufactured
OEM:
-
Article №: RIV600570 RIVOLV Alternator 55A, 12VCar parts maker: RIVOLVSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)Core exchange £ 7,53 core charge (incl. 20% VAT) is NOT included
The core charge will be refunded if you return the old spare part.
- Alternator Charging Current [A]: 55
- Voltage [V]: 12
- Belt Pulley Ø [mm]: 67
- Number of grooves: 4
- Position/Degree: re 60
- TecDoc Engine Number: 4AB
- Condition: New
-
Article №: 4G0524R RIDEX REMAN Alternator 70A, 12VCar parts maker: RIDEX REMANSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)Core exchange £ 31,05 core charge (incl. 20% VAT) is NOT included
The core charge will be refunded if you return the old spare part.
- Alternator Charging Current [A]: 70
- Voltage [V]: 12
- Rated Voltage [V]: 14
- Belt Pulley Ø [mm]: 67
- Pulleys: with belt pulley
- Number of grooves: 4
- Plug Type ID: W/D+/B+
- Vehicle Main Current: for vehicles with 12V main current
- Rotation Direction: Clockwise rotation
- Alternator Type: excl. vacuum pump
- Fastening Type: 3-point attachment
- Clamp: M6
- Bore Diameter 1 [mm]: 8
- Number of mounting bores: 3
- Number of threaded holes: 1
- Thread Size: M8
- Distance from belt pulley to alternator [mm]: 39
- Condition: Remanufactured
OEM:
-
Article №: QRA1450 QUINTON HAZELL Alternator 75A, 12VCar parts maker: QUINTON HAZELLSuitable for FORD TRANSIT Box (T_ _) 2.5 D (TAL, TAS, TGL, TWS) (50 KW / 68 HP / from 1986)
- Alternator Charging Current [A]: 75
- Voltage [V]: 12
- Manufacturer Restriction: Lucas
- for OE number: 54022244/ STC229/ ST
- Condition: New
OEM:
